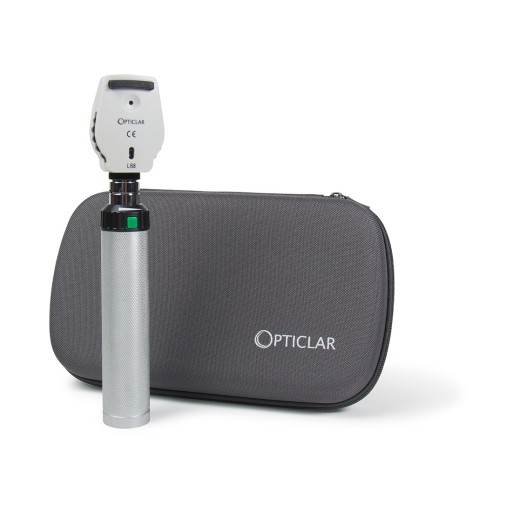

OPTICLAR OPTOMETRIST OPHTHALMOSCOPE AL 68


...
...
...
...
...
...
...
...
...

The AL68 delivers superb illumination for pupil examination. The superior miniaturised optics facilitate entry in to even the very small diameter pupils and specialist use. All AL68 opthalmoscope has 5 years warranty on the unit and 10 years warranty on the LED bulb.

Following types of Handles can be used;

  • C-Cell Non Rechregable battery handles(2 X C cell battery).
  • Rechrgeable battery Handles: Adapt desk & E-lithium rechargeable Handle.
  • Wall mounted handles
  • Trolley mounted Handles.



FEATURES
  • Fully featured
  • 5 years warranty on ophthalmoscope
  • 10 years bulb warranty.
  • True Tone™ LED illumination
  • Polarising filter practically eliminates corneal reflex and can be used on all apertures
  • Sealed optics for long life and reduced running cost

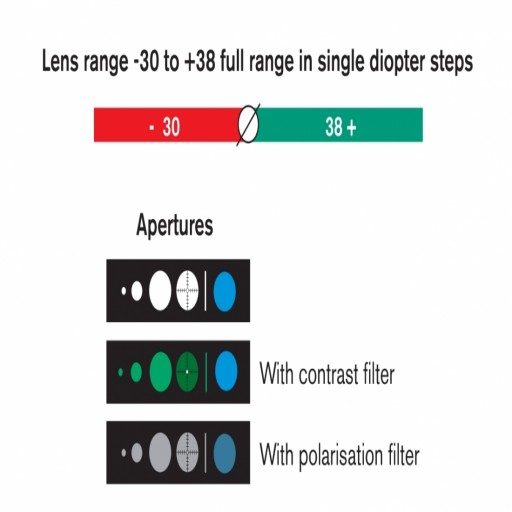

  • 68 lenses from -30 to +38d in single steps
  • Independently selectable red free filter for use on all apertures provides increased contrast
  • 18 filter/aperture combinations for increased diagnostic capabilities
  • Cobalt blue filter to help detect corneal abrasions
  • Selectable apertures – Micro Spot, small spot, large spot, fixation star, slit, cobalt blue, red free on all apertures
  • Polarising on all apertures except for red free and cobalt blue
  • Easy to operate lens wheel for accurate focusing
  • Smooth action thumb wheel for aperture selection

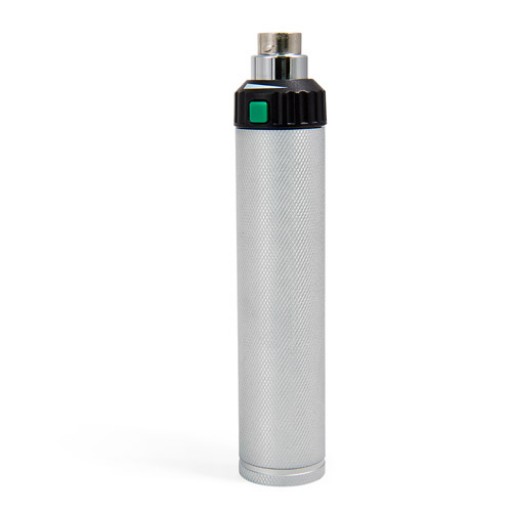

Adapt C Cell Battery Handle
  • Modular – allowing users to begin with battery handles but have the option to upgrade to a rechargeable format
  • Robust metal sleeve housing batteries
  • Knurled surface for maximum grip
  • Takes 2 x C cell batteries
  • Running duration: > 125 hours
Adapt USB Rechargeable Handle
  • Lithium Ion
  • Robust metal sleeve
  • Knurled surface for maximum grip

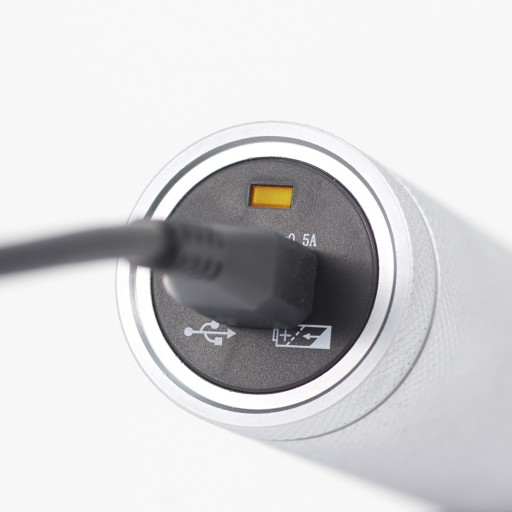

  • USB end cap charging point
  • Rotary control allows the LED brightness to be easily adjusted
  • Charging time: 12 hours initial, 8 hours normal
  • Running duration: > 20 hours

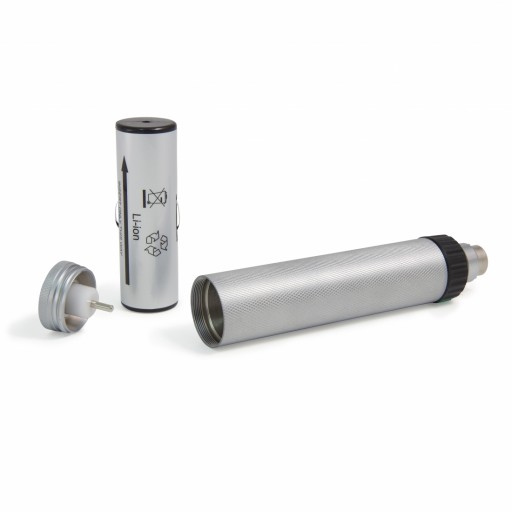

Adapt Rechargeable Handle
  • Lithium Ion
  • Robust metal sleeve housing
  • Knurled surface for maximum grip
  • Charging time: 2 hours approx.
  • Running duration: > 20 hours

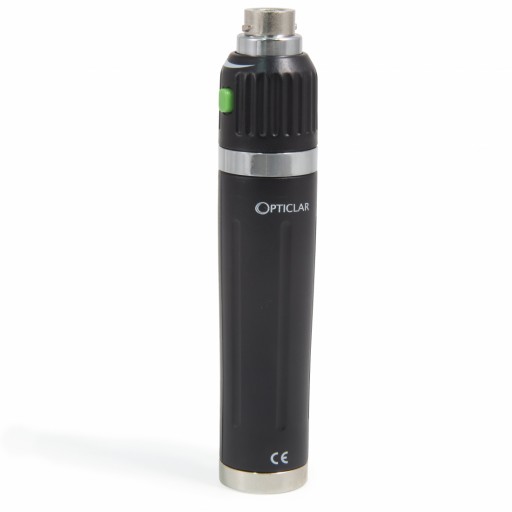

E-Lithium Handles
  • Manufactured from lightweight composite materials
  • Suited to practitioners with smaller hands and for carrying around in a coat pocket
  • Ribbed handle is easy to grip and comfortable to use
  • Rotary control allows the LED brightness to be easily adjusted
  • Charging time: 2 hours approx.
  • Running duration: > 10 hours
Wall Mounted Mains Unit
  • Wall mounted unit provides mains power for the LED ophthalmoscope
  • Single-bay
  • Fixed cord handles with working radius of more than 3 metres
  • Smooth design and rounded profile is hygienic, easy to clean and minimises traps
  • Auto on/off
  • Rheostat brightness control on each handle
  • Locking collars secures instrument head against loss and theft
  • Easy to assemble and install

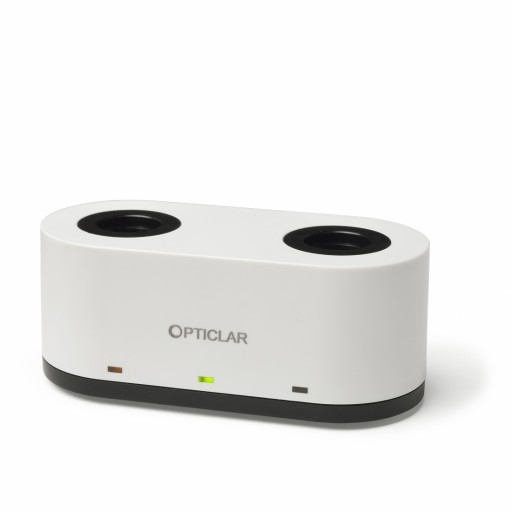

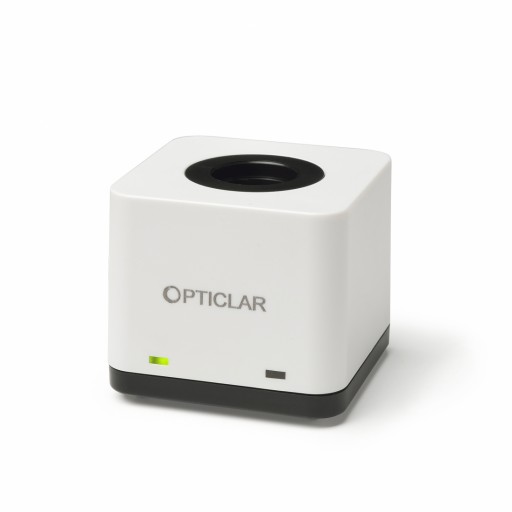

Recharging Pod
  • Complies with UK and international standards
  • CE marked
  • Supplied with 3 pin UK plugs and other configurations are available upon request
  • Conveniently position your charging pod with generous 3m/ 10ft lead
