Antares is a fully featured multi-functional corneal topographer. Antares has dedicated software designed to help in the detection and analysis of Dry Eye. The topography function provides information about the curvature, elevation and refractive power of the cornea. It also provides many parameters to aid in the diagnosis and monitoring of the corneal surface.
- Anterior Chamber Measurements
- Cornea measurement - Phoenix software
- High resolution corneal imaging

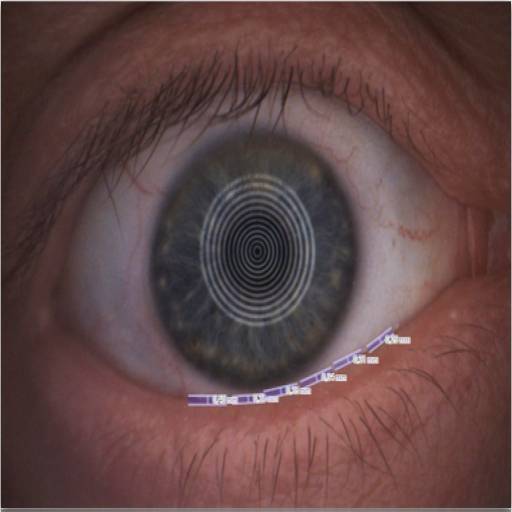

- Video keratoscope - Placido’s disk with 24 ring
- Advanced ring editing system
- High-resolution color video camera (1024x960 pixel)
- Topographic follow-up
- Cataract surgery plan, IOL calculation
- Corneal wavefront analysis
- Gonioscopy and Glaucoma analysis.
MAPS

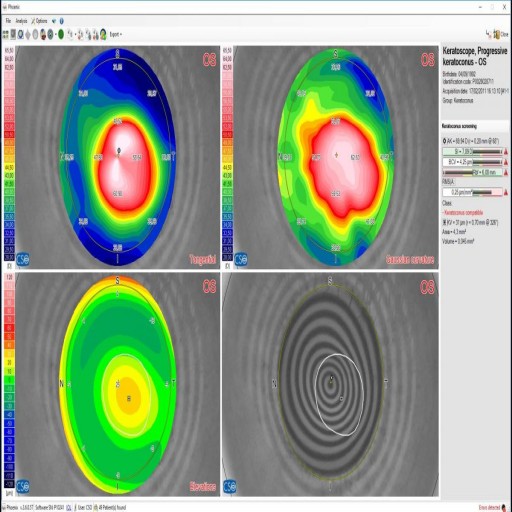

- Tangential curvature (anterior and posterior)
- Sagittal curvature (anterior and posterior)
- Elevation (anterior and posterior)
- Refractive power (equivalent, anterior and posterior)
- Anterior chamber depth
- Corneal thickness
INDICES
- Summary indices
- K-readings (anterior and posterior)
- Epithelial thickness indices
- Shape indices
- Refractive analysis indices
- Keratoconus screening
ADVANCED ANALYSIS
- Customizable summaries
- ICRS summary
- Optical corneal analysis
- Follow up summaries
PUPILLOGRAPHY
- Infrared pupillography in scotopic
- Mesopic
- Photopic conditions
- Dynamic light conditions
