OPTICLAR STANDARD PRACTICE LED OPHTHALMOSCOPE L28


...
...
...
...
...
...
...

The L28 delivers superb illumination for pupil examination. The superior miniaturised optics facilitate entry in to even the very small diameter pupils available in stylish carry pouches. All L28 opthalmoscope has 5 years warranty on the unit and 10 years warranty on the LED bulb.

Following types of Handles can be used;

  • C-Cell Non Rechregable battery handles(2 X C cell battery).
  • Rechrgeable battery Handles: Adapt desk & E-lithium rechargeable Handle.
  • Wall mounted handles
  • Trolley mounted Handles.

FEATURES:

  • Polarising filter practically eliminates corneal reflex and can be used on all apertures
  • Sealed optics for long life and reduced running cost

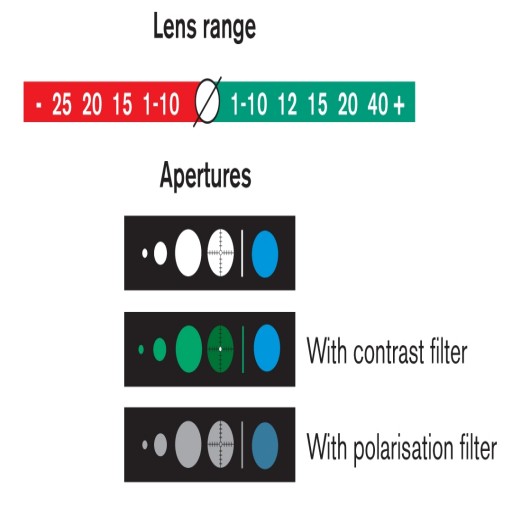

  • 28 lenses from -25 to +40d
  • Independently selectable red free filter for use on all apertures provides increased contrast
  • 18 filter/aperture combinations for increased diagnostic capabilities
  • Cobalt blue filter to help detect corneal abrasions
  • Easy to operate lens wheel for accurate focusing
  • Smooth action thumb wheel for aperture selection

C-CEll BATTERY HANDLES

  • Modular – allowing users to begin with battery handles but have the option to upgrade to a rechargeable format
  • Robust metal sleeve housing batteries
  • Knurled surface for maximum grip
  • Rotary control allows the LED brightness to be easily adjusted
  • Takes 2 x C cell batteries
  • Running duration: > 60 hours

USB-RECHARGEABLE HANDLES

  • Lithium Ion
  • Robust metal sleeve
  • Knurled surface for maximum grip

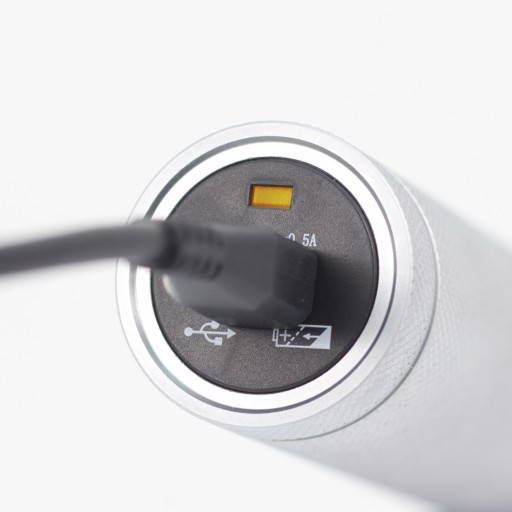

  • USB end cap charging point
  • Rotary control allows the LED brightness to be easily adjusted
  • Charging time: 12 hours initial, 8 hours normal
  • Running duration: > 20 hours

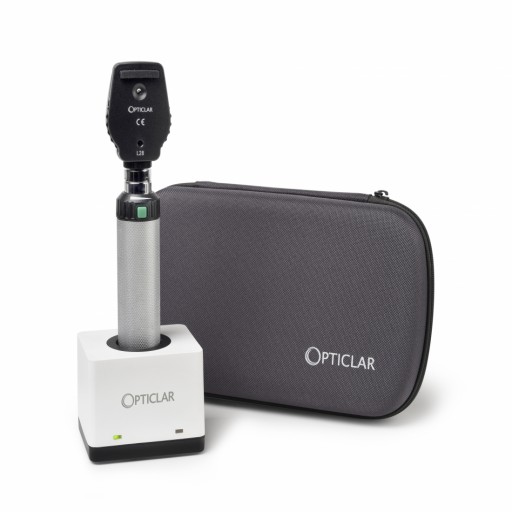

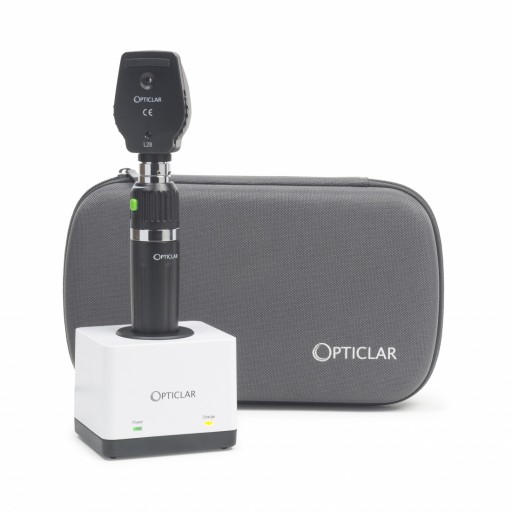

Adapt Desk Rechargeable Handle
  • Lithium Ion
  • Robust metal sleeve
  • Knurled surface for maximum grip
  • Rotary control allows the LED brightness to be easily adjusted
  • Charge time: 2 hours approx.
  • Running duration: > 20 hours
E Lithium Rechargeable Handle
  • Manufactured from lightweight composite materials
  • Particularly suited to practitioners with smaller hands and for carrying coat pocket
  • Ribbed handle is easy and comfortable to use
  • LED brightness is easily adjusted with rotary control
  • Charge times: 2 hours (approx)
  • Running time: > 10 hours
Trolley Mounted Mains Unit
  • Trolley mounted unit provides portable mains power for the LED ophthalmoscope
  • Single-bay
  • Fixed cord handles with working radius of more than 3 metres
  • Smooth design and rounded profile is hygienic, easy to clean and minimises traps
  • Auto on/off
  • Rheostat brightness control on each handle
  • Locking collars secures instrument head against loss and theft
  • Easy to assemble and install

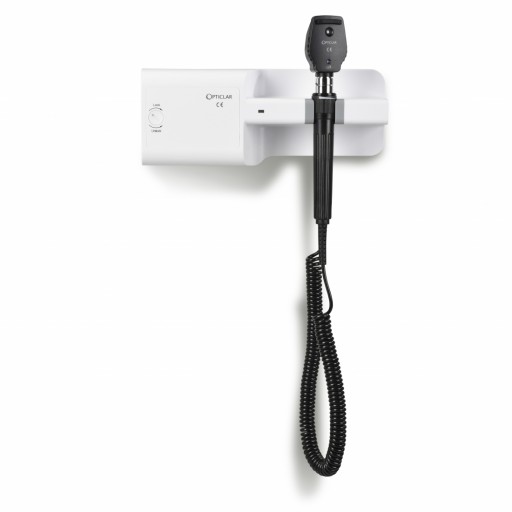

Wall Mounted Mains Unit
  • Wall mounted unit provides mains power for the LED ophthalmoscope
  • Single-bay
  • Fixed cord handles with working radius of more than 3 metres
  • Smooth design and rounded profile is hygienic, easy to clean and minimises traps
  • Auto on/off
  • Rheostat brightness control on each handle
  • Locking collars secures instrument head against loss and theft
  • Easy to assemble and install

Recharging Pod

  • Complies with UK and international standards
  • CE marked
  • Supplied with 3 pin UK plugs and other configurations are available upon request
  • Conveniently position your charging pod with generous 3m/ 10ft lead
